Fixed pool lift F130
The anchorage must always be carried out on a bearing wall in stone or with a thickness of more than 25 cm by means of dowels or safety counter-plate.

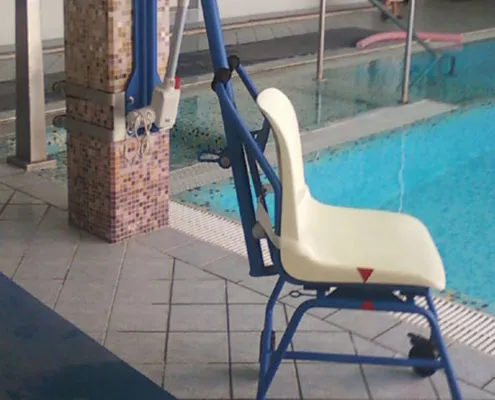

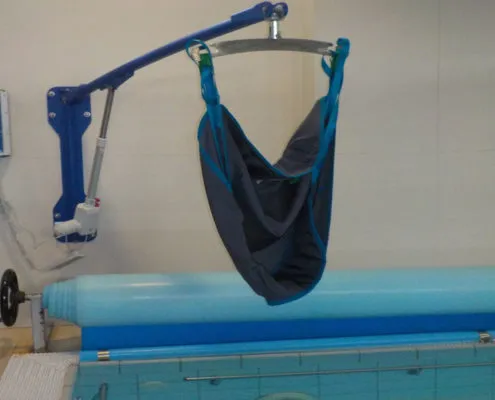

The lift can be equipped with a seat + wheels or a sling.
The model F130 is particularly suitable for raised therapeutic pools in masonry, whirlpools, mud therapy that are in confined spaces.
Product description
Description

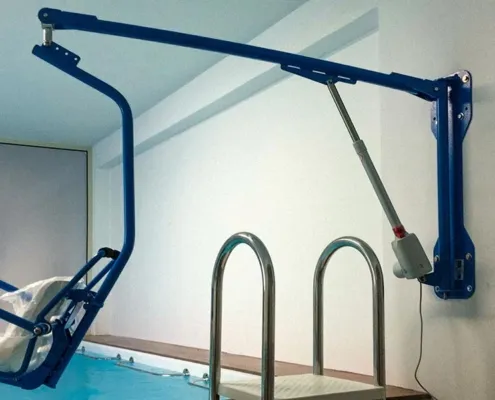

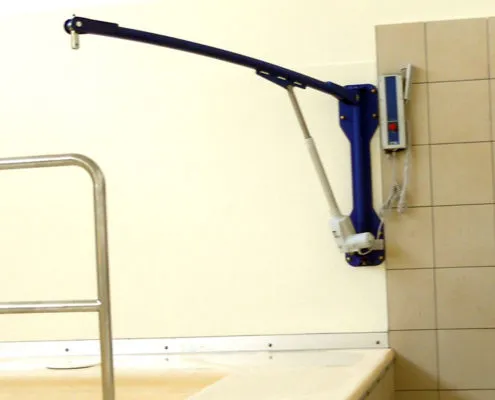

The F130 fixed lift allows, through its flagged structure, to be fixed to perimeter or bearing walls, thus eliminating the need for a basement on the ground.
Technical Features
Technical Features
- IPX06 spiral cable push-button panel for up-down controls from the water
- Retractable leg support
- Adjustable armrests
- 160° rotation
- Removable battery with charger
- Emergency stop button
- Average autonomy: 50 working cycles
- 2-point safety belt
- Galvanizing and powder coating treatment
- Stainless steel frame for in-water parts
Techniccal Details
Techniccal Details
-
- Maximum capacity: 140 kg
- Maximum travel: 1365 mm
- Time of lowering lifting with weight into water: 20 sec
- Weight of the lift: 50 kg
- Battery: 24 V
OPTIONAL
- Different arms lengths available
- Cover for electric actuator
Certification And Patent
Certification And Patent
- Regulation EU 2017/745 Medical Devices – class 1 – DM 321258/R
- Directive 2006/42/EC Machinery Directive
- Directive 2004/108/EC – EMC Electromagnetic Compatibility
