FIXED POOL LIFT F145

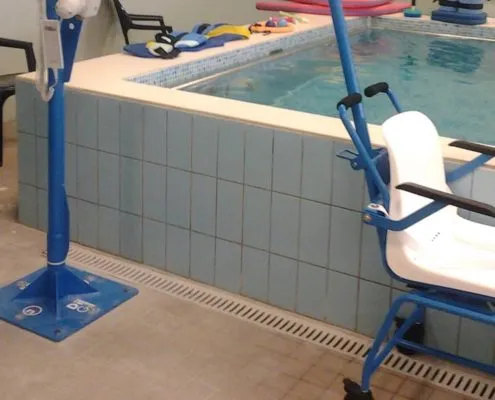

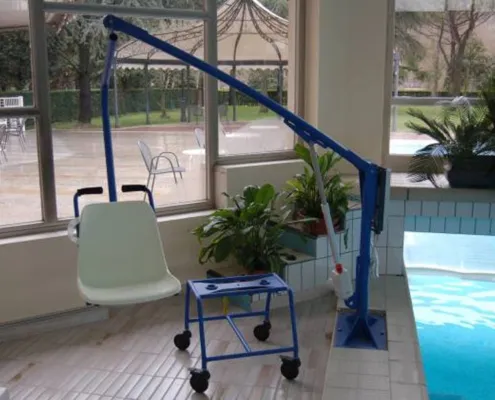

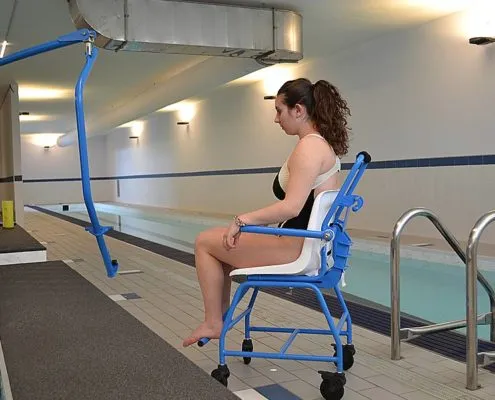

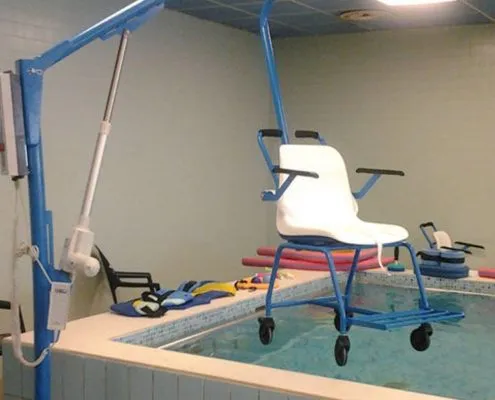

The F145 (high pole version) and F145B (low pole version) models are configured as semi-portable pool lifts as they include fixed (but removable) parts installed on the floor and a chair + wheeled trolley that can be used as a means of transport from the pool to the changing room and vice versa.
Alternatively, the lift can be equipped with a sling.
The F145 and F145B lifts allow, through their structure, to be anchored to the ground through three types of solution: an external plate to be fixed with dowels or a plate to be drowned in a 60x60x60 concrete block or, alternatively, a socket that disappears into the ground.
Product description
Description
The different models offered by DiGi Project have been designed to meet the main shapes and characteristics of the largest number of pools:

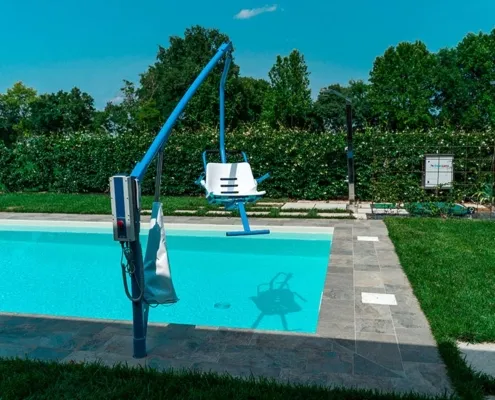

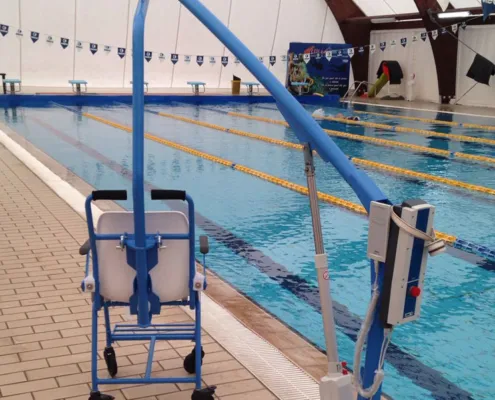

the F145 lift (high pole) is suitable for any type of walled pools.

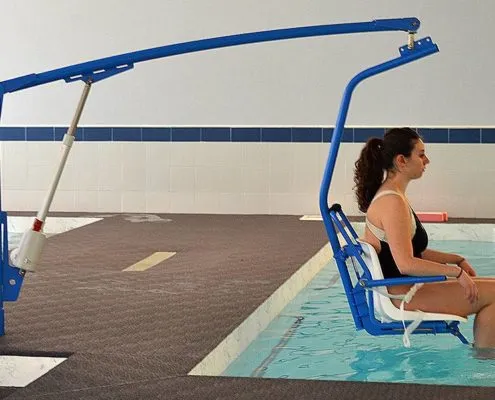

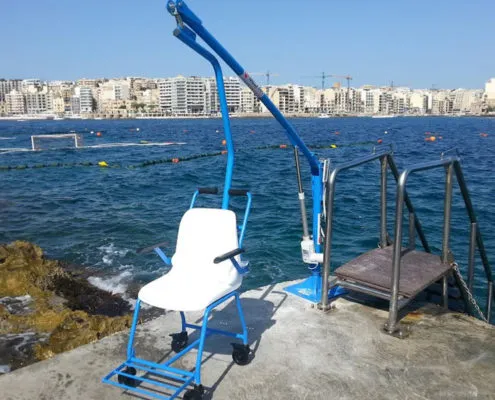

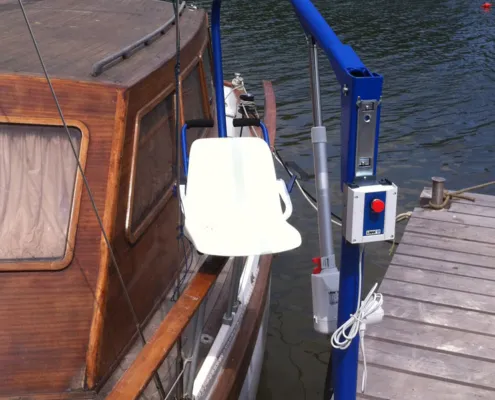

The F145B version (low pole) is suitable for skimmer or ground deck pools or for other needs such as boats, harbours, docks etc.
Technical Features
Technical Features

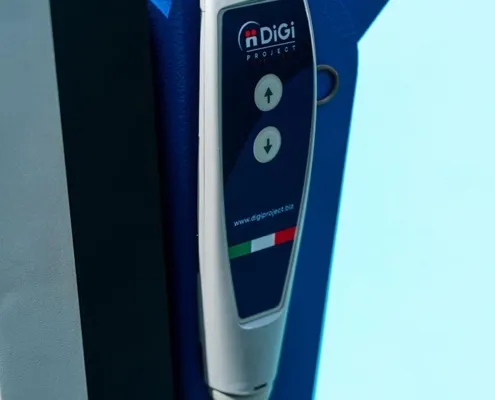

- IPX06 spiral cable push-button panel for up-down controls from the water
- Retractable leg support
- Adjustable armrests
- 360° rotation
- Removable battery with charger
- Emergency stop button
- Average autonomy: 50 working cycles
- 2-point safety belt
- Galvanizing and powder coating treatment
- Stainless steel frame far in-water parts
Techniccal Details
Techniccal Details
-
-
- Maximum capacity: 140 kg
- Maximum travel: 1350 mm
- Time of lowering – lifting with weight into water: 20 sec
- Weight of the lift: 66 kg
- Battery: 24 V
OPTIONAL
- Different arms lengths available
- 3 different fixing systems available
- Cover for electric actuator
-
Certification And Patent
Certification And Patent
- Regulation EU 2017/745 Medical Devices – class 1 – DM 321258/R
- Directive 2006/42/EC – Machinery Directive
- Directive 2004/108/EC – EMC Electromagnetic Compatibility
