Pelican Pool
“ACCESS IN COMPLETE INDEPENDENCE TO THE POOL”

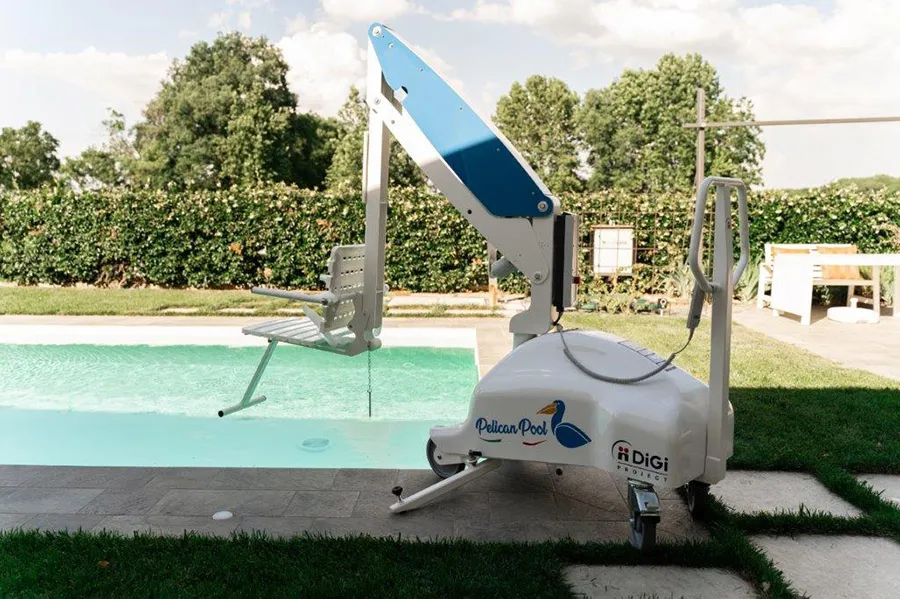

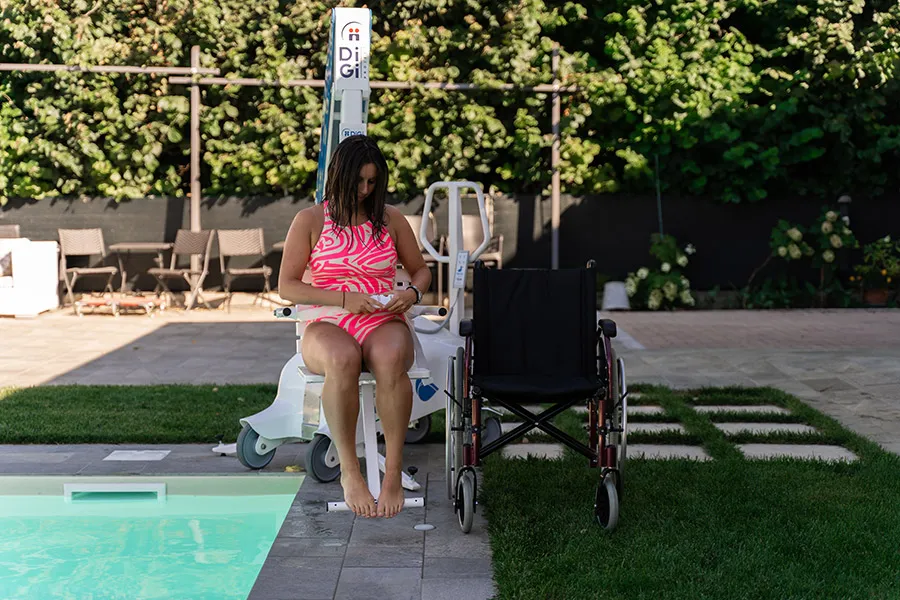

PELICAN POOL is a medical device that guarantees people with reduced mobility accessibility to the pool.
This new model, thanks to its advanced technical features, allows the removal of architectural barriers even in swimming pools with external walls up to 50 cm height.
PandaPool is at the cutting edge of technology thanks to its innovative features.

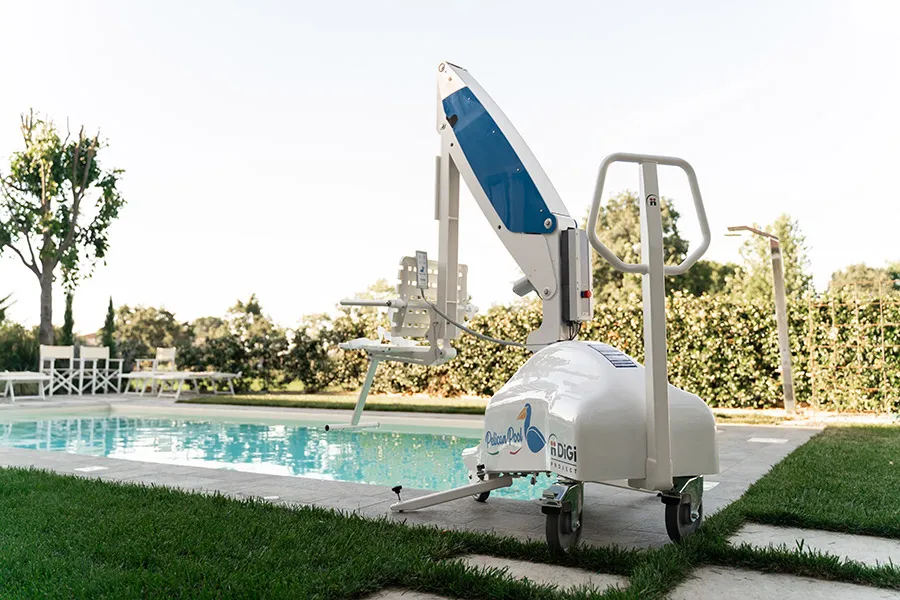

It is both a motorised and portable lift, equipped with a drawbar with automatic traction to reduce any operator effort.
FULLY AUTOMATIC LIFTER
It has a load capacity of 150 kg and 8 safety levels, making it not only the top of the range, but the universal reference in pool lifts: the best synthesis of quality, innovation, reliability and technological development.

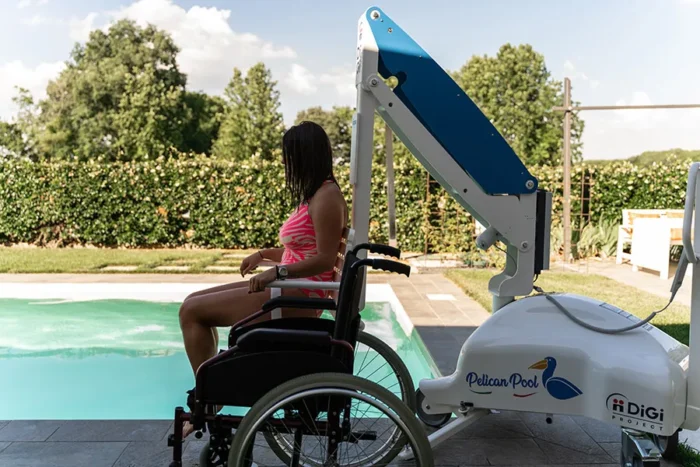

Moreover, thanks to its practical seat rotation system, the user can carry out the operations of getting in and out of the water in complete autonomy.
Like the other models of DIGI PROJECT range, the PELICAN POOL portable pool lift has the same features in terms of safety and practicality.
Product description
Technical Features
Technical Features

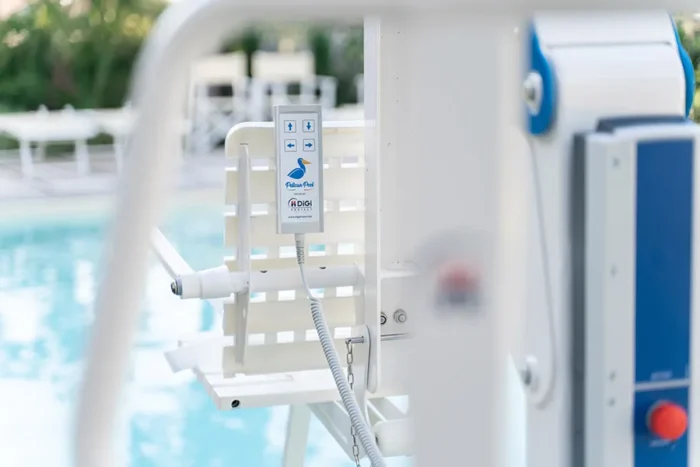

- IPX06 spiral cable push-button panel for up-down controls from the water and rotation controls

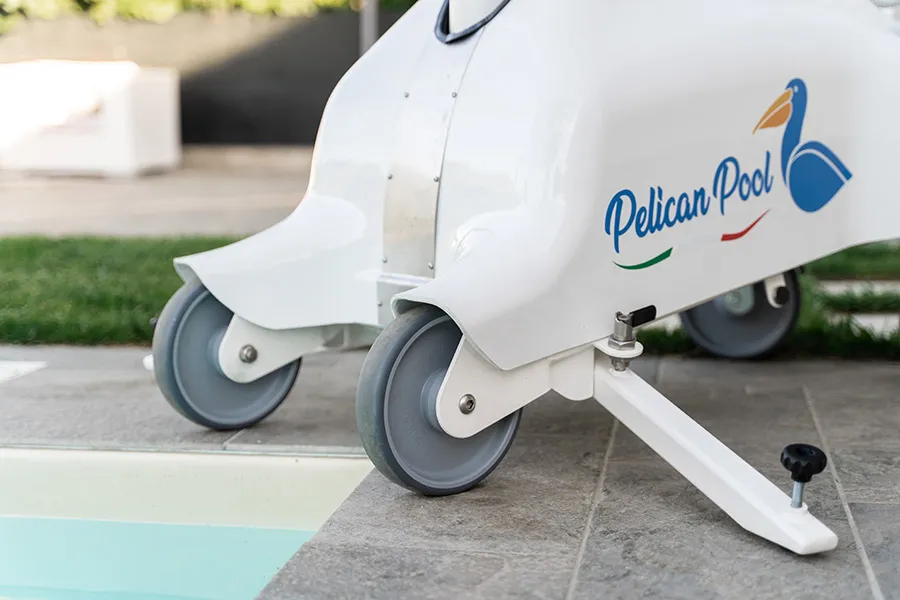

- Pivoting braking rear wheels
- Headrest included
- Retractable leg support
- Adjustable armrests
- Removable battery with charger
- Emergency stop button
- Average autonomy: 30 working cycles

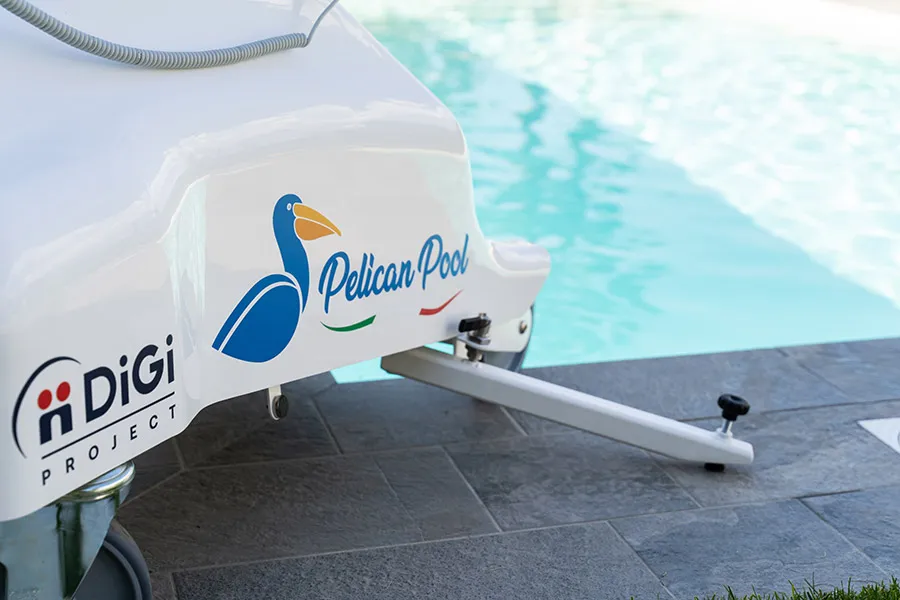

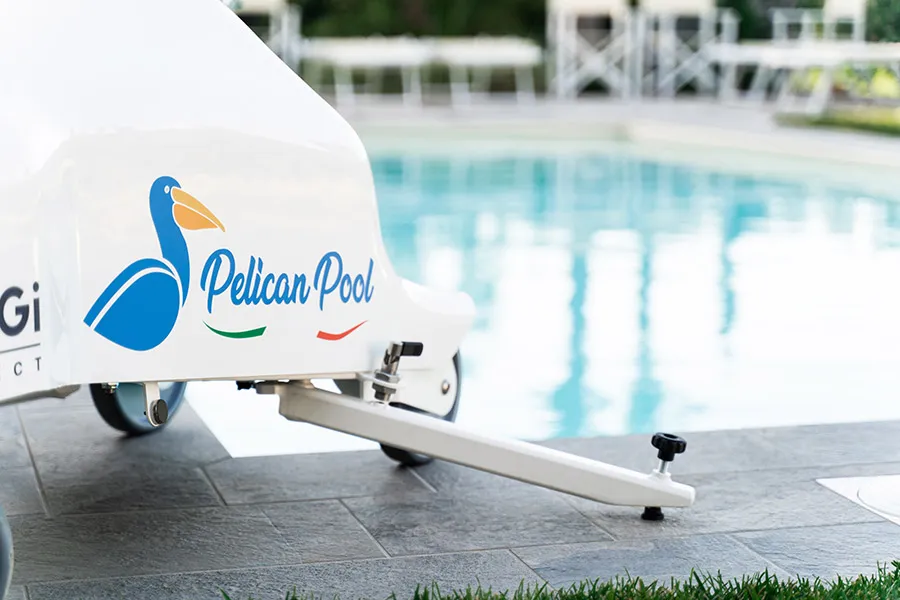

- Side stabilizers with safety sensors
- End-stroke sensors far seat rotation

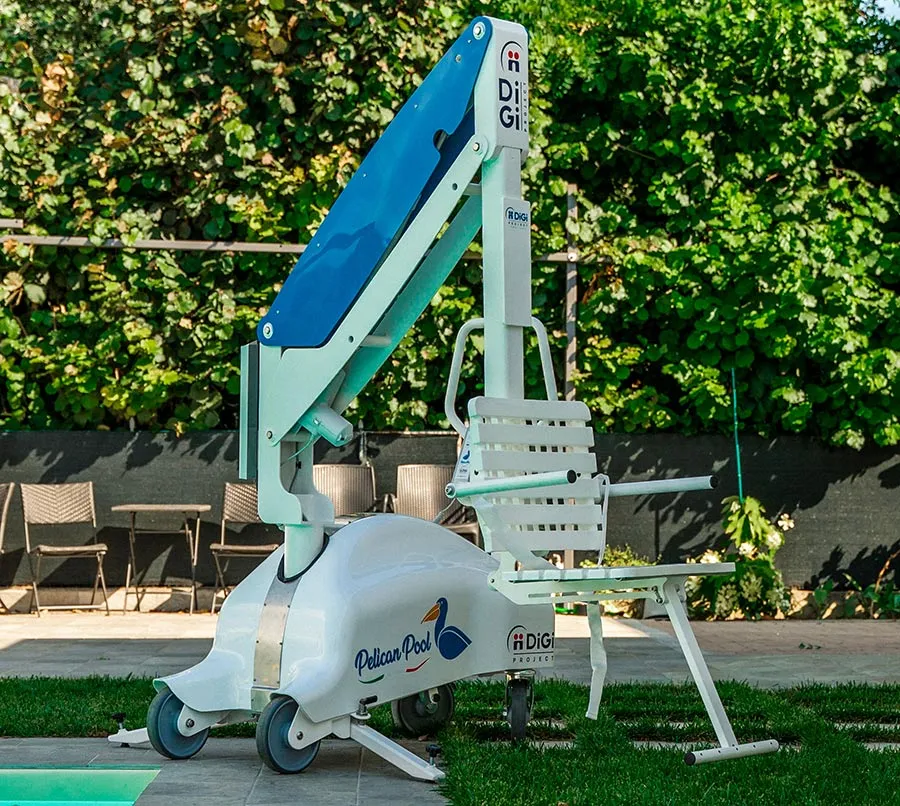

- Folding compact seat
- 2-point safety belt
- Stainless steel frame for in-water parts
- Galvanization and powder coating
Techniccal Details
Techniccal Details
- Maximum capacity: 140 kg
- Maximum travel: 1645 mm
- Depth of seat inside the water: 865 mm
- Time of lowering – lifting with weight into water: 25 sec
- Weight of the lift: 340 kg
- Battery: 24 V
OPTIONAL
- 4-point safety belt
- 5-point safety belt
- Cover
Certification And Patent
Certification And Patent
- Patent pending
- Regulation EU 2017/745 Medical Devices – class 1
- Directive 2006/42/EC – Machinery Directive
- Directive 2004/108/EC – EMC Electromagnetic Compatibility
